Sample handling






용도(Applications)

- Adjustable Low Flow Tube Holders
- Protective Covers
- Constant Pressure Controllers (CPC)
- Low Flow Tube Holders For 222 Series and Pocket Pumps

규격(Specifications)

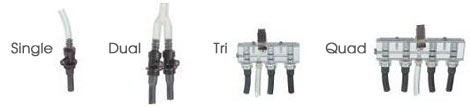

1. Adjustable Low Flow Tube Holders 유량조절용 밸브가 부착되어 있는 sorbent tube holder
38-1

주문정보

Type
Cat. No.
Qty.
Single
224-26-01
Each
Single
224-26-01
Each
Dual
224-26-02
Each
Tri
224-26-03
Each
Quad
224-26-04
Each


2. Protective Covers   Sorbent tube를 외부 충격으로부터 보호하기 위한 플라스틱 커버

Cover
Tube Specifications
Cat. No.
Qty.
A
6 mm x 70 mm long
224-29A
Each
A
6 mm x 70 mm long
224-29A
Each
B
8 mm x 100 mm long
224-29B
Each
C
10 mm x 150 mm long
224-29C
Each
D
10 mm x 220 mm long
224-29D
Each
T
Tandem style for color detector tubes up to 115 mm long and a trap tube
224-29T
Each
V
OVS Tubes
(Do not use an adjustable low flow holder)
224-29V
Each
P
Low Volume PUF
(Do not use an adjustable low flow holder)
224-29P
Each


3. Constant Pressure Controllers (CPC)   Flow를 bypass 시켜 Adjustable Low Flow Tube Holders과 함께 Low Flow로 조절하는 controller

Type
Cat. No.
Qty.
AirChek 2000 and AirChek 52
224-26-CPC
Each
AirChek 2000 and AirChek 52
224-26-CPC
Each
Pocket Pump
224-26-CPC-10
Each


4. Low Flow Tube Holders For 222 Series and Pocket Pumps  유량 조절용 밸브가 없는 저유량 펌프 전용 Holder

Cover
Tube Specifications
Cat. No.
Qty.
A
standard 6 mm OD x 70 mm long
222-3-1
Each
A
standard 6 mm OD x 70 mm long
222-3-1
Each
B
7 or 8 mm OD x 100 mm long
222-3L-1
Each
C
10 mm OD x 150 mm long
222-3XL-1
Each
D
10 mm OD x 220 mm long and shorter tubes
222-3XD-1
Each
T
Tandem style for color detector tubes up to 115 mm long and a trap tube
222-3D-1
Each


5. Accessories

Description
Cat. No.
Breaker Capper Size S for 6 and 7 OD x 70 mm tubes
222-3-50
Breaker Capper Size S for 6 and 7 OD x 70 mm tubes
222-3-50
Breaker Capper Size L for 8 and 10 OD x 110 mm tubes
222-3-51
Tube Scorer/Breaker for 6 mm OD Tubes; scores and breaks the end tips off glass tubes resulting in a clean smooth opening
800-00010
Quality file for Tips
P2222318
Charcoal Pick
222-3-20
